Power Range
Above 625kVA（50Hz、60Hz）
Product Description

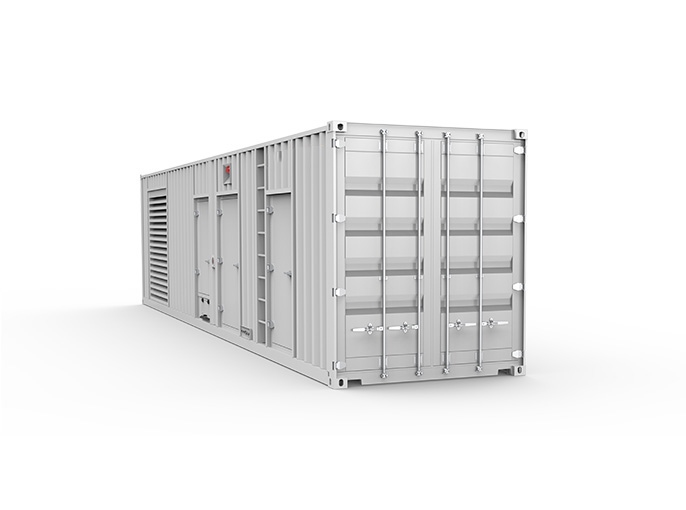

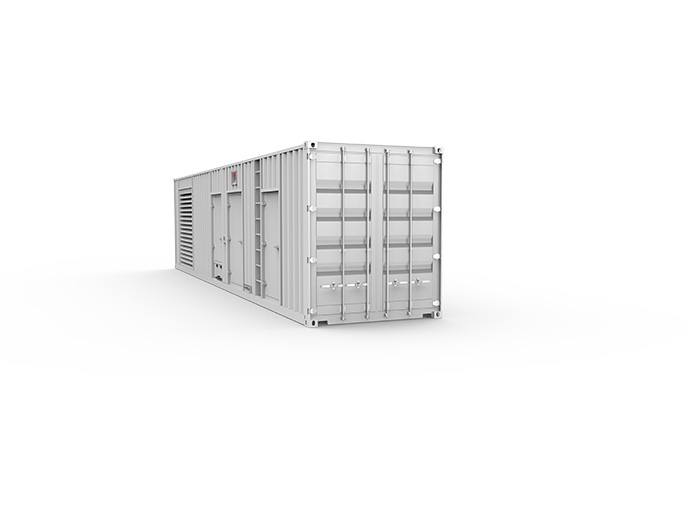

● 20 and 40 feetcontainer can be adopted based on power range;

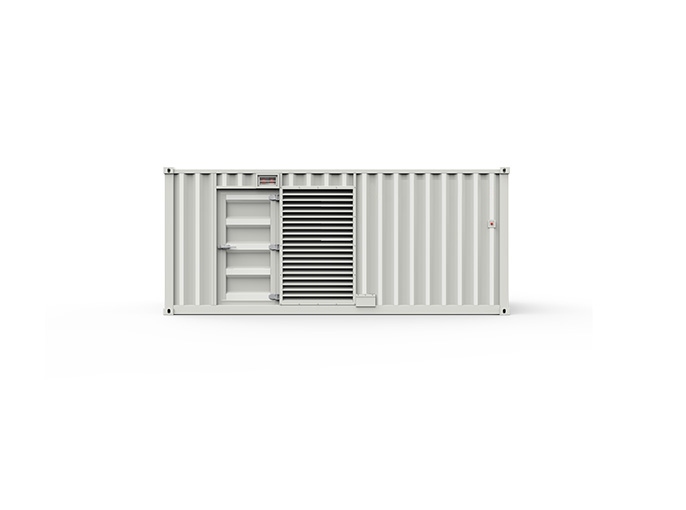

● Side doors aremounted on both sides of container, convenient for daily check and maintenance.

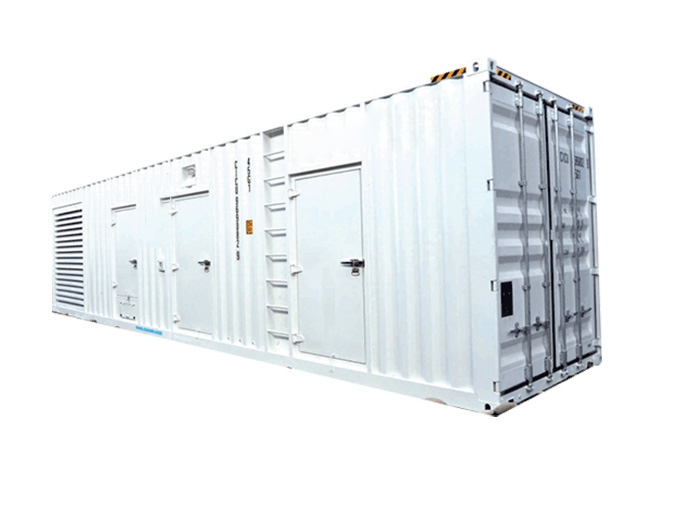

● Cat ladder canbe equipped above 500kW containerized generating sets, making it easier forlifting and point inspection.
● External oilfilter design can ensure the fuel safety when generating sets outside.
● Cabinet and baseframe are made of high quality slabs and coated with excellent coatingmaterial, with three layers of bottom-medium-top spraying process and high anticorrosion and antirust capacity.
Noise Reduction Development
● The overhead muffler andpiping system has enlarged the lading space and can be greatly convenient formachine repair;
● The inner of containerizedcanopy has been treated by noise reduction, the walls and the top are bothtreated by sound-absorbing and heat insulation.
Safety Design
● The containerized genset isdesigned for rainproof and sand proof that can be used in windy desert area.The anti-rat net has been installed outside the doors and windows to preventsmall animals entering causing damage;
Build-In Independent Tank
● Build-in large scaleindependent tank can satisfy the normal operation of genset.
Convenient Transportation
● The restructuringstandard of containerized genset meets the requirements of national standardGB/T1413 and GB/T1992 as well as the demands of sea transportation and landtransportation.
Application scope
● It is applied in various construction sites, such ashuge buildings, airports, harbors, offshore operation platforms and fieldprojects, etc.
